Introduction
Create separate backend services to be consumed by specific
frontend applications or interfaces. This pattern is useful when you want to
avoid customizing a single backend for multiple interfaces. This pattern was
first described by Sam Newman.
Advantages of graphQL as BFF
One of the leading technology used to implementation for BFFs
is GraphQL. Let us look at the advantages and important features of this
technology.
·
Rest vs Graphql API: In Rest single end point
pairs with a single operation. If different response needed new end point is
required. GraphQL allows you to pair with single end point with multiple data
operations .
o
This
results in optimizing traffic bandwidth.
o
Fixes the issue of under-fetching /
over-fetching.
·
Uses single end point . Http requests from client
will be simple implementation.
·
N+1 problem solution for aggregating data from different
microservices.
·
Pagination : The GraphQL type system allows for
some fields to return list of values which help in implementation of pagination
for API response.
·
Error Extensions: GraphQL there is a way to
provide extensions to the error structure using extensions.
Few issues / anti patterns in GraphQL schema design need
proper design and can be avoided using best practices recommended for this
pattern. Here are few of them
·
Nullable fields: In GraphQL every field is
nullable.
·
Circular reference . It can result in massive data
in response.
·
Allowing invalid data and using custom scalar
to overcome this issue.
References
https://graphql.org/learn/best-practices
GraphQL
Best Practices Resources and Design Patterns | API Guide
Use cases and implementation of GraphQL:
we can see GraphQL
helps in aggregating multiple back end services /sources and providing one
interface to each client only the data it needs. That makes Graphql easy to
build BFF.
Use case 1: In
talash.azurewebsites.net Images, video
data coming from two different micro services and TalashBFF will aggregate both
services and return as GraphQL end point response. Which is basically at client
just need to mention required query no need to look into details of rest end points for image and Video.
Implementation Details:
Graphql server will deliver post end point with the
following two query from client side.
|
Image data { Images { url } } |
Video Data { videos { url } } |
Query:
public ImageQuery(ImageData
data)
{
Field<NonNullGraphType<ListGraphType<NonNullGraphType<ImageType>>>>("Images",
resolve: context =>
{
return data.Imagezes;
});
As shown above data.imagezes is resolver which will fetch data from http
end point and return Image type which is graph ql type has url and member.
Similar query and types designed for video Data and retrieved
though the another resolver.
So In above example it is possible to get data from two different
sources from same Graphql end point and the number of fields retrieved can change and not tightly coupled to the client
implementation. Apollo angular client
used to consume GraphGL end point.
Git url: dasaradhreddyk/talashbff
All major advantages can be achieved with above simple implementation. We can look in to more complex examples below.Use case 2: In above example to implement grpahql server and end point graphql-dotnet project used which is most popular implementation of dotnet based graphql server. There are many implementations available for each programming language.
Git repo: graphql-dotnet/server:
ASP.NET Core GraphQL Server
Hasura takes the known entity that is Postgres and turns it into
a magic GraphQL end point locked down by default. Postgres and GraphQL are both
pretty known entities. GraphQL less so of a known entity but it's gaining
popularity.
AWS AppSync features
·
Simplified
data access and querying, powered by GraphQL
·
Serverless WebSockets for GraphQL subscriptions
and pub/sub channels
·
Server-side caching to make data available in
high speed in-memory caches for low latency
·
JavaScript and TypeScript support to write
business logic
·
Enterprise security with Private APIs to
restrict API access and integration with AWS WAF
·
Built in authorization controls, with support
for API keys, IAM, Amazon Cognito, OpenID Connect providers, and Lambda
authorization for custom logic.
·
Merged APIs to support federated use cases
There
few advanced servers they can help to expose DTO objects as graphql end
points. Hasura is one such grapqhql
implementation.
Hot Chocolate :Hot Chocolate is a GraphQL platform for that
can help you build a GraphQL layer over your existing and new infrastructure.
Here
is good video to start using hotchocolate.
Here
is some list of popular servers
t is said that Express
GraphQL is the simplest way to run a GraphQL API server.
Express is a popular web application framework for Node.js allowing you to
create a GraphQL server with any HTTP web framework supporting connect styled
middleware including Express, Restify and, of course, Connect.
Getting started is as easy as installing some additional dependencies in form
of npm install express express-graphql graphql --save\
is an open-source GraphQL server compatible with any GraphQL client and it's an easy way to build a production-ready, self-documenting GraphQL API that can use data from any source. Apollo Server can be used as a stand-alone GraphQL server, a plugin to your application's Node.js middleware, or as a gateway for a federated data graph. Apollo GraphQL Server offers:
easy setup - client-side can start fetching data instantly,
incremental adoption - elastic approach to adding new features, you can add them easily later on when you decide they're needed,
universality - compatibility with any data source, multiple build tools and GraphQL clients,
production-ready - tested across various enterprise-grade projects
Hot Chocolate
Hot Chocolate is a GraphQL server you can use to create GraphQL
endpoints, merge schemas, etc. Hot Chocolate is a part of a .NET based ChilliCream
GraphQL Platform that can help you build a GraphQL layer over
your existing and new infrastructure. It provides pre-built templates that let
you start in seconds, supporting both ASP.Net Core as well as ASP.Net Framework
out of the box.
API PLATFORM
API
Platform is a set of tools that combined build a modern
framework for building REST and GraphQL APIs including GraphQL Server. The
server solution is located in the API Platform Core Library which is built on
top of Symfony 4 (PHP) microframework and the Doctrine ORM. API Platform Core
Library is a highly flexible solution allowing you to build fully-featured
GraphQL API in minutes.
Here is good video to compare different Graphql
servers and bench marking among them.
Use
case 3: What are the challenges working with graphql . We can look at few
patterns which are popular in implementing Graphql.
Security:
Here
is few best practices for securing GraphQL end points. It is important to follow
best practices to over come cyber attacks which involve brute force attack , Malicious
Queries or batching multiple Queries.
Ref: GraphQL API Security
Best Practices
GraphQL API Security Best Practices
Now that we've covered the basics of GraphQL API security when it comes to the code, let's shift our focus to essential best practices for securing your APIs that extend beyond just what is implemented within the code itself. Here are nine best practices to take into consideration when implementing GraphQL.
1. Conduct Regular Security Audits and Penetration Testing Regularly audit your GraphQL APIs and perform penetration tests to uncover and address vulnerabilities before they can be exploited. Use automated scanning tools and professional penetration testing services to simulate real-world attack scenarios.
2. Implement Authentication and Authorization Use standard authentication protocols like OAuth 2.0, OpenID Connect, or JWT-based auth. Implement fine-grained authorization logic to ensure users and services can only access the data they are permitted to see or manipulate.
3. Encrypt Data in Transit and at Rest Always use TLS (HTTPS) to encrypt data in transit. For data at rest, use robust encryption algorithms and secure key management. This is crucial to protecting sensitive data, such as user credentials, personal information, or financial records.
4. Effective Error Handling, Logging, and Input Validation Ensure that error messages do not expose internal details of your schema or implementation. Maintain comprehensive logs for debugging and auditing but never log sensitive data. Validate and sanitize all inputs to thwart injection-based attacks.
5. Use Throttling, Rate Limiting, and Query Depth Limiting Limit the number of requests per client or per IP address. Apply query depth and complexity limits to prevent resource starvation attacks. An API gateway or middleware solution can enforce these policies automatically.
6. Ensure Proper API Versioning and Deprecation Strategies Adopt transparent versioning practices to ensure users know when changes occur. Provide a clear migration path and sunset deprecated versions responsibly, giving users time to adapt.
7. Embrace a Zero-Trust Network Model Assume no user or system is trustworthy by default. Employ strict verification mechanisms at every layer, enforce the principle of least privilege, and segment the network for added security.
8. Automate Scanning and Testing for Vulnerabilities Integrate vulnerability scanning into your CI/CD pipeline. Perform both static (SAST) and dynamic (DAST) checks to catch issues before they reach production, adjusting to new threats as they arise.
9. Secure the Underlying Infrastructure Apply security best practices to servers, containers, and cloud platforms. Regularly patch, monitor for intrusions, and enforce strict firewall and network rules. Infrastructure security often complements API-level security measures.
Caching:

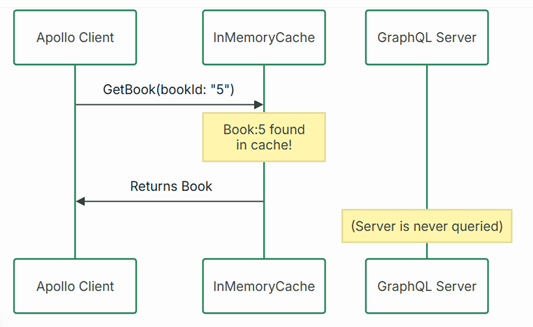

Here is one example where apollo client cache response of an object.
Best Design patterns:
Here is one way to look at Design patterns with graphQL. GraphQL with BFF is
mostly used pattern But still we can see some monolithics use graphql server to
deliver their controller end points and use new UI infrastructure . It depends
on application design and other factors which helps to decide using graphQL.
|
Pattern |
Advantages |
Challenges |
Best Use Cases |
|
Client-Based
GraphQL |
Easy to
implement, cost-effective |
Performance
bottlenecks, limited scalability |
Prototyping,
small-scale applications |
|
GraphQL
with BFF |
Optimized
for clients, better performance |
Increased
effort, higher complexity |
Applications with
diverse client needs |
|
Monolithic
GraphQL |
Centralized
management, consistent API |
Single
point of failure, scaling issues |
Medium-sized
applications, unified schema |
|
GraphQL
Federation |
Scalable,
modular, team autonomy |
Increased
complexity, higher learning curve |
Large-scale,
distributed systems |
Composer
Pattern:
Ref:
(22)
API Composition Pattern with GraphQL | LinkedIn
Here is simple example where Graphql can be used as aggregating
data from 3 services and also joining all data and service it as single out
put.
- BookService:
allows to get books.
- AuthorService:
allows to get books authors.
- InventoryService:
allows to get books inventory.
- BookComposerService:
is the API Composer Service that allows us to get a view, joining data
coming from the previous three services. This service is the only one that
will be exposed externally to the k8s cluster via a deployment that
includes a service defined as NodePort, instead all the other services
will be exposed only internally, so their pods will be exposed via k8s
services deployed as ClusteIP.
Complex Graphql Queries:
As shown below directive @export used to pass user name from first query result to second query and retrieving blog posts. It is one use case where one query depends on other and it is possible to achieve this using custom directives. Not all GraphQL servers support these kind of customizations but there are many such features in each GraphQL server and which are unique in optimizing query execution and achieving better result.
